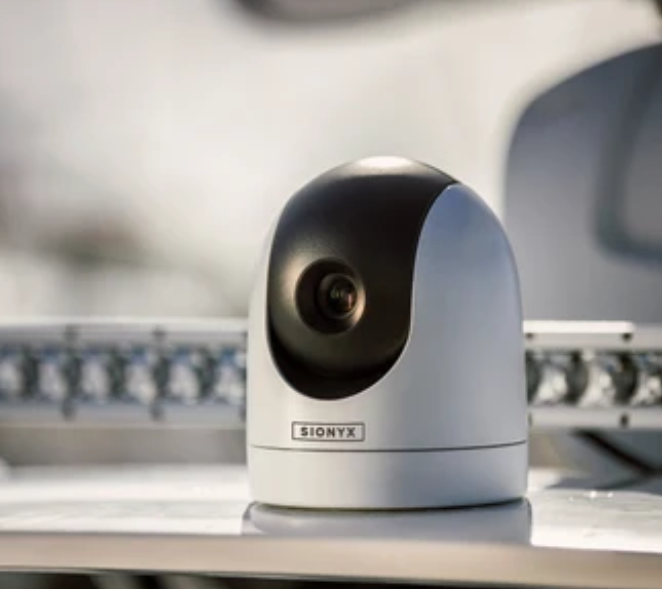

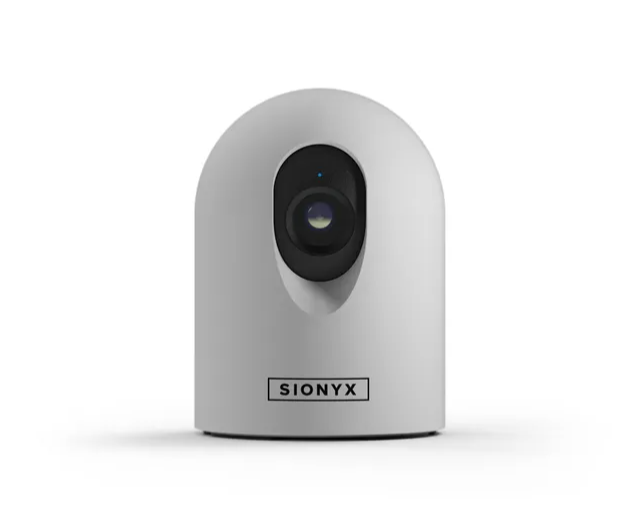

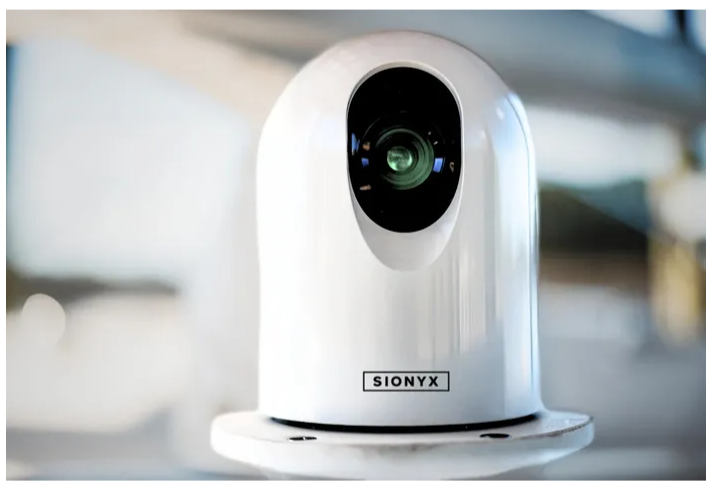

SIONYX Nightwave Digital Marine Camera - White
SIONYX Nightwave Digital Marine Camera - White
This listing is for:
1 x SIONYX Nightwave Digital Marine Camera - White
Meet the next generation of ultra-low-light marine imaging - SIONYX Nightwave Digital.
Delivering exceptional ultra-low-light imaging performance specifically engineered for marine environments, Nightwave Digital combines network connectivity, seamless MFD integration, and our revolutionary Black Silicon CMOS sensor technology with NightIQ™ image-optimization technology to deliver clear, usable visibility after dark. The result is full-color night vision that reveals detail and manages glare in real-world marine conditions.
Key Features:
Network (PoE) digital connectivity
Seamless MFD integration with major brands
Mobile app connectivity via Wi-Fi for installation and service
Auto day/night mode switching
Engineered for large screen displays with high definition output
Key Specs:
NETWORK COMPATIBILITY: GARMIN | RAYMARINE | NAVICO (SIMRAD) | WINDOWS PC | MAC

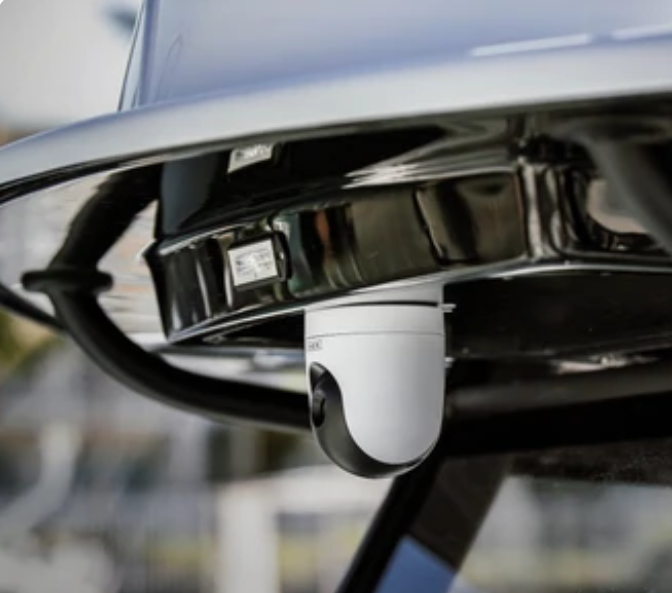

MOUNTING OPTIONS: BALL UPRIGHT OR BALL DOWN
MATERIAL: UV RESISTANT POLYCARBONATE
WARRANTY: 2 YEARS
IMAGE SETTINGS: BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, ADVANCED FILTERS
MAN-SIZED OBJECT DETECTION: 300M / 984FT
MARINE VESSEL DETECTION: 4.02KM / 2.5 MILES
MINIMUM ILLUMINATION: MOONLESS STARLIGHT (<0.001 LUX) - TOTAL DARKNESS CAPABILITY
IMAGE RESOLUTION: 1280 X 1024 HIGH DEFINITION
FRAME RATE: UP TO 30HZ
HORIZONTAL FIELD OF VIEW: 44°
FOCUS RANGE: FIXED 10M TO INFINITY
LENS: 16MM F/1.4 GLASS LENSES
WEIGHT: 1KG (2.2 LBS)
VISIBLE SPECTRUM: 400-1200NM (INCLUDES INFRARED LIGHT)
IP67 WATER/DUST RESISTANT
SHOCK & VIBRATION: 20G VERTICAL, 10G HORIZONTAL
OPERATING TEMPERATURE: -20°C TO +50°C
WIND RESISTANCE: 100 MPH (161 KPH)
SOLAR UV EXPOSURE: MIL-STD-810G
POWER: PoE (9 V DC - 36 V DC)
POWER CONSUMPTION: 5W NOMINAL
VIDEO OUTPUT: H264 MAIN PROFILE
DIMENSIONS: 127 X 175MM (5 X 6.9 IN)
DAYTIME USE: OPTIMIZED FOR ALL LIGHTING CONDITIONS
