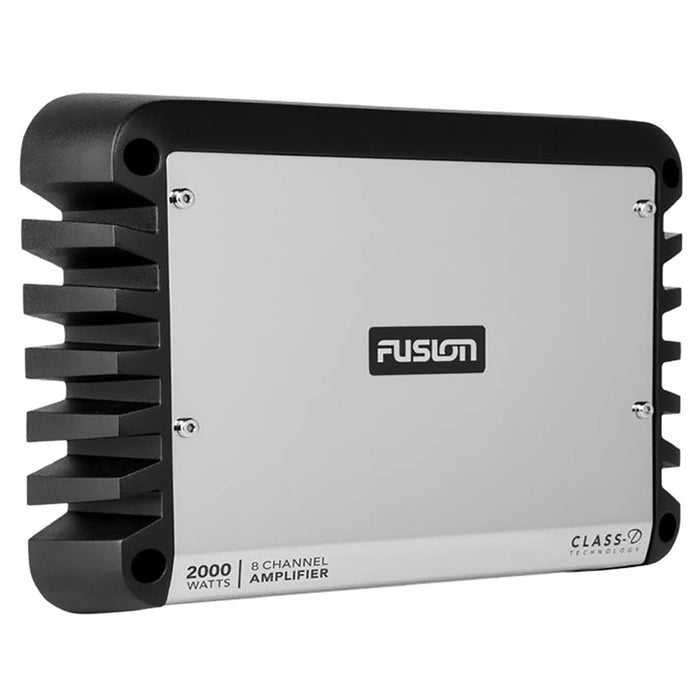

Fusion 2000W Signature Series Amplifier 8 Channel Sg-Da82000
Fusion 2000W Signature Series Amplifier 8 Channel Sg-Da82000
EXPERIENCE THE POWER OF MUSIC
Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive environmental protection available — delivering a Signature performance out on the water.
Class-D amplifier design delivers higher efficiency and greater output.
Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power.
Conformal coated PCBs provide extra protection from the marine elements.
Rigid aluminium alloy heat sink is moulded for greater dissipation of heat.
The amplifiers are available in monoblock, 4-channel, 5-channel, 6-channel and 8-channel configurations.
Engineered to last season after season, the amplifiers include a supported 3-year warranty.
GENERAL
Physical dimensions (LxWxH) Monoblock/ and 4/5 channels: 11.81" x 8.27" x 1.97" (300 x 210 x 50 mm)
6/8 channels: 16.54" x 8.27" x 2.24" (420 x 210 x 57 mm)
Amplifier class D
Peak power (Watts) Monoblock: 2250 W
4 channel: 1400 W
5 channel: 1600 W
6 channel: 1500 W
8 channel: 2000 W
Total rated power output - 4 Ohm (Watts) Monoblock: 500 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input - 4 Ohm < 1% THD
6 channel: 100 W RMS x 6 @ 14.4 V input - 4 Ohm < 1% THD
8 channel: 100 W RMS x 8 @ 14.4 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts) Monoblock: 850 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input - 2 Ohm < 1% THD
6 channel: 140 W RMS x 6 @ 14.4 V input - 2 Ohm < 1% THD
8 channel: 140 W RMS x 8 @ 14.4 V input - 2 Ohm < 1% THD
Total rated power output (Watts) Monoblock: 1100 W RMS x 1 @ 14.4 V input - 1 Ohm < 1% THD
4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
