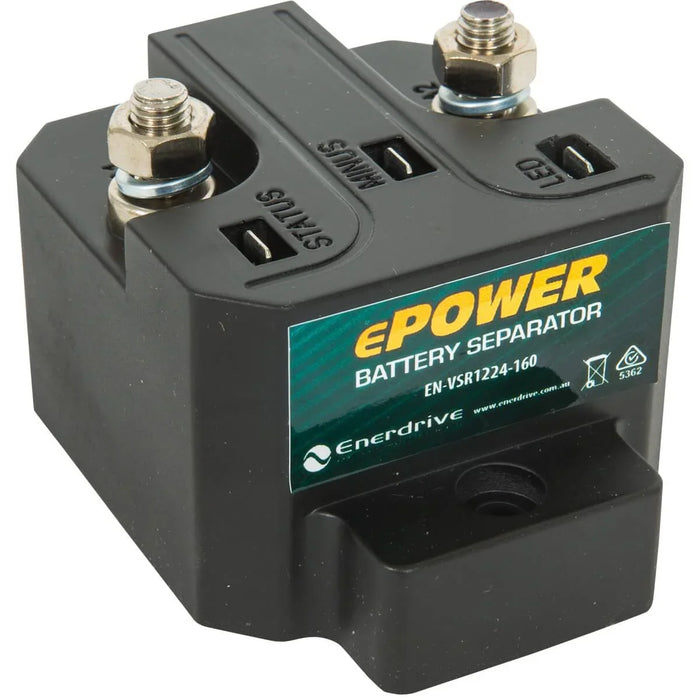

Enerdrive Vsr 12V/24V 160A
Enerdrive Vsr 12V/24V 160A
When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.
Additionally, the ePOWER VSR range offers features like :
No voltage loss
Intelligent battery monitoring to prevent unwanted switching
Starter battery priority
Bipolar switching
Voltage dependent switching
Applications
Marine
Caravans
Camper vans
RV’s
When the engine is started, starting and auxiliary batteries are separated allowing only the starting battery to be charged. When the charge voltage reaches 13.2 volts the VSR engages allowing both starting and auxiliary batteries to be charged. When the engine is stopped and the battery voltage falls below 12.8 volts the VSR disengages separating the start and auxiliary batteries. The auxiliary battery continues to power any accessories without risk of draining the starting battery.
Additionally, the ePOWER VSR range offers features like:
No voltage loss
Intelligent battery monitoring to prevent unwanted switching
Starter battery priority
Bipolar switching
Voltage dependent switching
Applications:
Marine
Caravans
Camper vans
RV’s
| EN-VSR1224-160 | |
|---|---|
| Auto Voltage Detect | 12 / 24V |
| Continuous Current (A) | 160 |
| Connect Voltage (V) | 13.2 / 26.4 |
| Disconnect Voltage (V) | 12.8 / 25.6 |
| Standby Current | <3mA |
| Connection for remote on / off | Yes |
| Micro switch for remote status indication | LED |
| Weight (kg) | 0.47 |
| Dimensions L x W x H (mm) | 108 x 72 x 58 |
