Enerdrive 12V 400W Psw Inverter EN1104S
Enerdrive 12V 400W Psw Inverter
With ePOWER’s state of the art, easy to use design, the 400W G2 inverter will offer you reliable service for providing AC power for your home, boat, caravan, 4WD or commercial vehicle. The Enerdrive ePOWER 400W G2 Inverter can run many AC powered appliances when you need AC power anywhere.
Features:
True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life.
Audio & Visual alarm with warning/error codes to alert user to check inverter condition before unit shutdown.
Automatic shutdown protects overload, over temperature and low/high battery conditions.
High surge capacity for products that require more power to start (2 x constant).
High efficiency conversion of battery available power to AC power.
Mounting brackets for permanent installation.

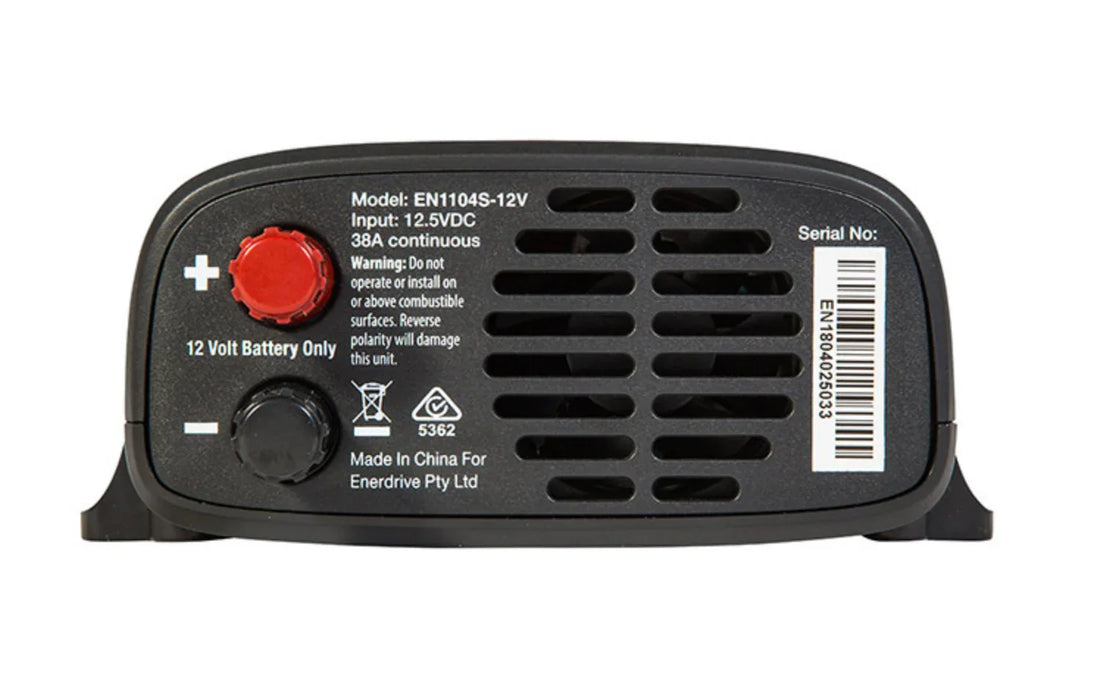

Heavy duty DC battery stud connectors.

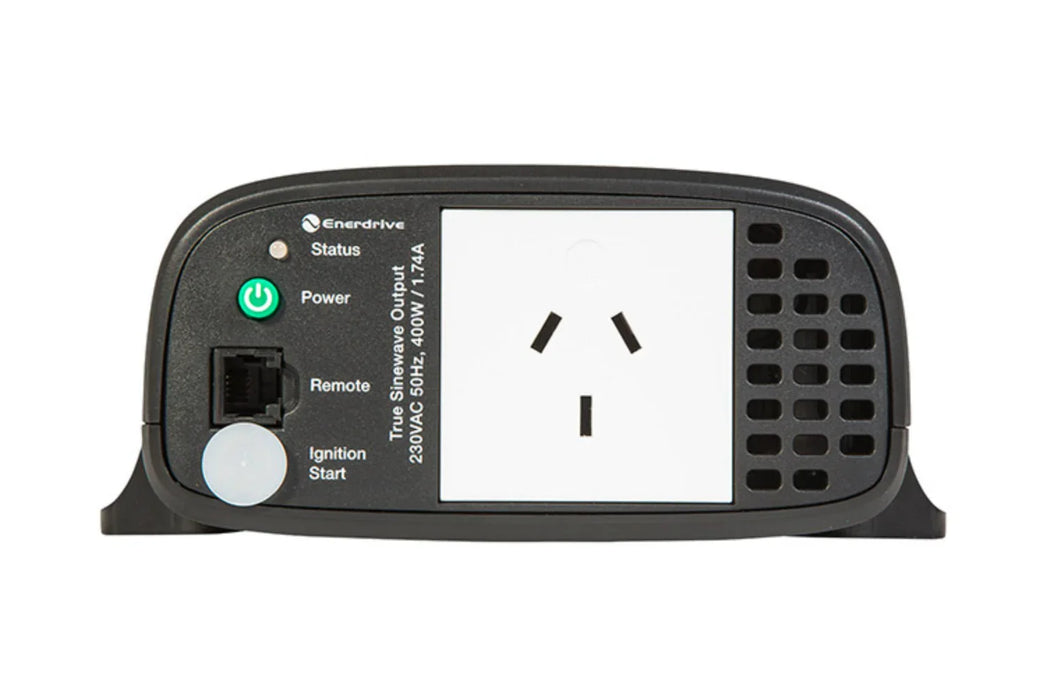

Ignition Start terminal for turning the unit On and OFF using a +12V signal.

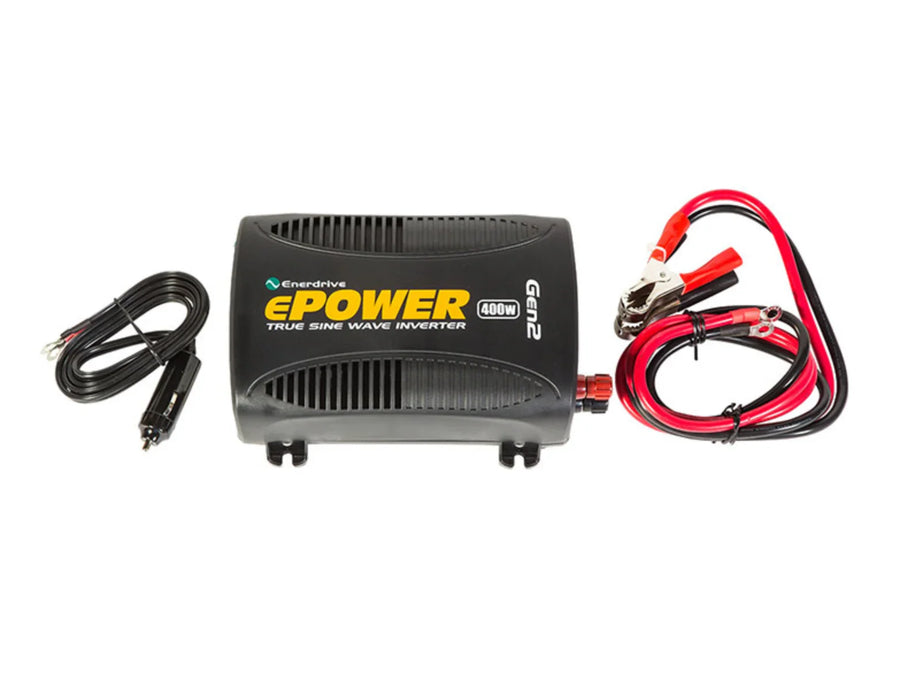

DC battery cable with HD aligator clips & 12v Cig Socket cable supplied.
With ePOWER’s state of the art, easy to use design, this 400W inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.
Australian GPO Outlets
True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
Automatic shutdown protects overload, over temperature and low/high battery conditions
High surge capacity for products that require more power to start (2 x constant)
High efficiency conversion of battery available power to AC power
Mounting brackets for permanent installation
Heavy duty DC battery stud connectors
Includes 5V USB port
Specifications
| Model – Description | ePOWER 400 | ePOWER 1000 | ePOWER 2000 |
|---|---|---|---|
| Part Number | EN1104S | EN1110S | EN1120S |
| AC Output Power | 400W | 1000W | 2000W |
| AC Output Current | 1.74A | 4.3A | 8.7A |
| AC Surge Power (Peak) | 800W | 2000W | 4000W |
| AC Output Voltage | 230 Vac / 50 Hz | ||
| AC Output Waveform | True Sinewave | ||
| AC Output Socket | 1 outlet | 1 outlet | 2 outlet |
| Nominal DC Input Voltage | 12.5 VDC | ||
| No Load battery draw | < 0.8 ADC | < 1.2 ADC | < 1.2 ADC |
| DC Input Voltage operating range | 10.5 – 15.5 VDC | ||
| Under Voltage Alarm | 11.2 VDC | ||
| Under Voltage Shutdown | 10.5 VDC | ||
| Under Voltage Recovery | 11.8 VDC | ||
| Over Voltage Shutdown | 15.5 VDC | ||
| USB | 5V, 1A | 5V, 750 mA | 5V, 750 mA |
| Safety and Environmental | |||
| Conformance | All required Australian Standards | ||
| Agency Markings | RCM | ||
| Operating Temperature | 0°C to 40°C | ||
| Storage Temperature | -20°C to 60°C | ||
| Relative Humidity | 5-90% noncondensing | ||
| Operating Altitude | Up to 3000 meters above sea level | ||
| Weights and Dimensions | |||
| Weight | 1.73Kg | 2.9Kg | 5.5Kg |
| Dimensions (W x L x H) | 177 x 200 x 90mm | 177 x 325 x 90mm | 230 x 416 x 110mm |
| Warranty | 2 Years | ||
| Load | Consumption | Estimate Run time |
|---|---|---|
| Cordless Phone | 5W | 80 hrs |
| Clock/Radio | 8W | 65 hrs |
| Table Lamp | 40W/60W | 22 hrs/ 15 hrs |
| Freezer (8.8 cu. ft.) | 80W | 12 hrs |
| 20″ LCD TV | 100W | 10.5 hrs |
| Refrigerator (18 cu. ft.) | 120W | 8.3 hrs |
| Microwave (mid-size) | 1000W | 44 min |
| Coffee Maker | 1200W | 35 min |
| Vacuum | 1400W | 28 min |
