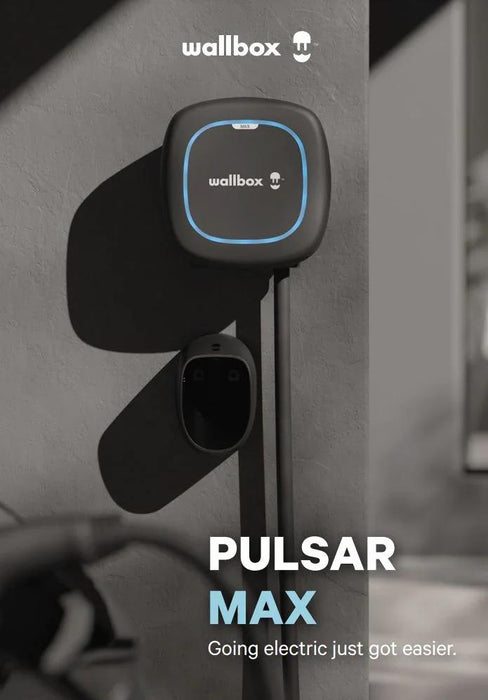

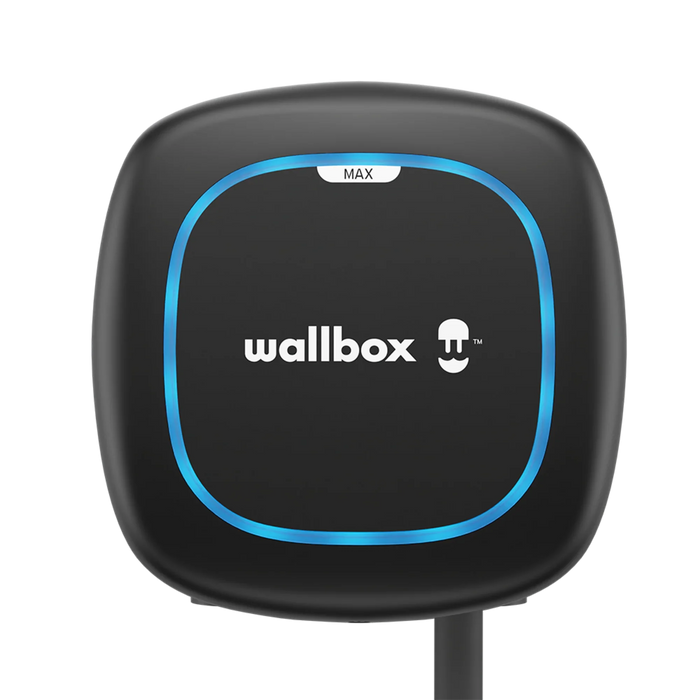

Wallbox Pulsar Max EV Electric Vehicle Charger - Type 2 - 5M - Black
Wallbox Pulsar Max EV Electric Vehicle Charger - Type 2 - 5M - Black
This listing is for:
1 x Wallbox Pulsar Max EV Electric Vehicle Charger - Type 2 - 5M - Black

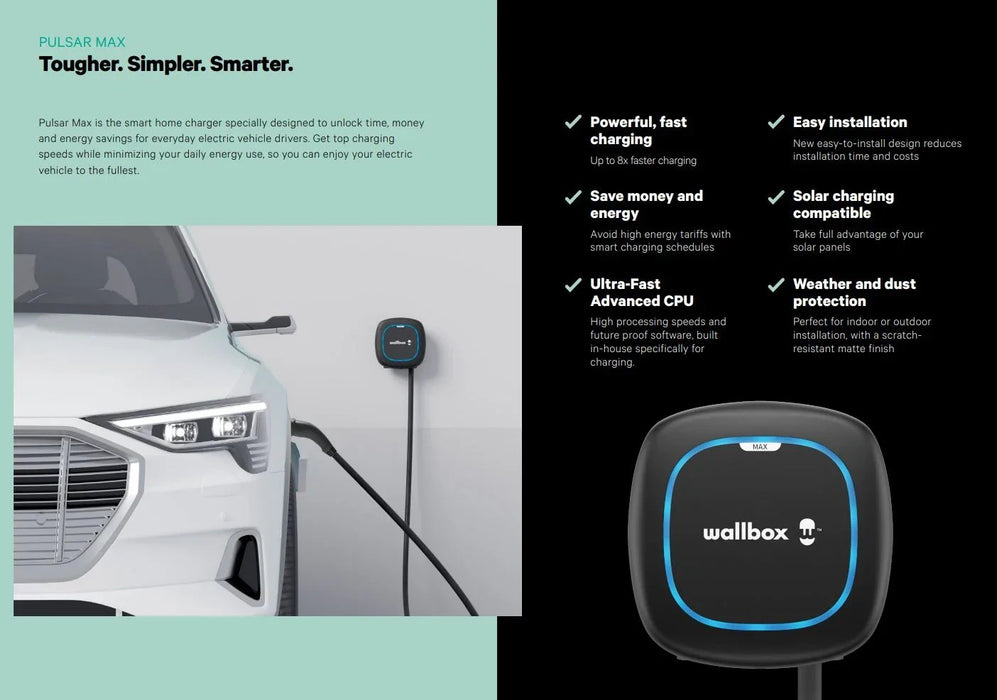

Pulsar Max is the smart home charger specially designed to unlock time, money and energy savings for everyday electric vehicle drivers. Get top charging
speeds while minimizing your daily energy use, so you can enjoy your electric vehicle to the fullest.
Powerful, fast charging Up to 8x faster charging
Save money and energy. Avoid high energy tariffs with smart charging schedules
Ultra-Fast Advanced CPU. High processing speeds and future proof software, built in-house specifically for charging.
Easy installation. New easy-to-install design reduces installation time and costs

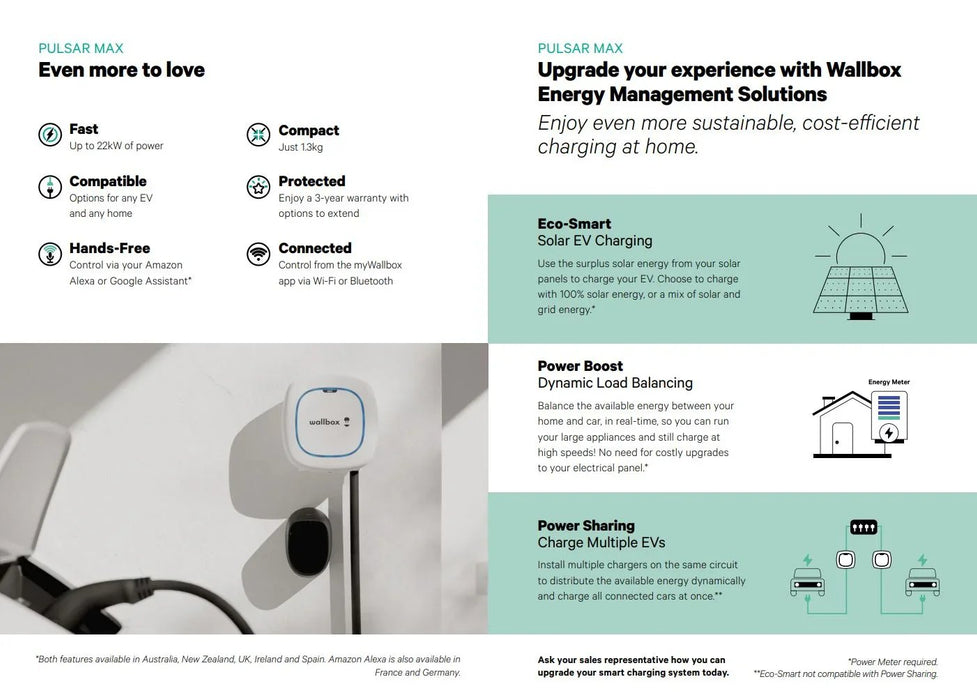

Solar charging compatible. Take full advantage of your solar panels
Weather and dust protection. Perfect for indoor or outdoor installation, with a scratchresistant matte finish
Pulsar Max is universal. Compatible with any vehicle and electrical installation.
Comfort is important. The Pulsar Max comes with a connector support included.
Integrated DC leakage protection.
Local and remote lock/unlock.
Control your energy consumption.
Includes Bluetooth and WiFi connection.
Easy to install, easy to use, easy to enjoy.
The most compact design on the market with the maximum efficiency. Very small, very effective.
Scheduling of the charging sessions. Allows to charge when the energy costs are the lowest.
Manual power adjustment from the App.

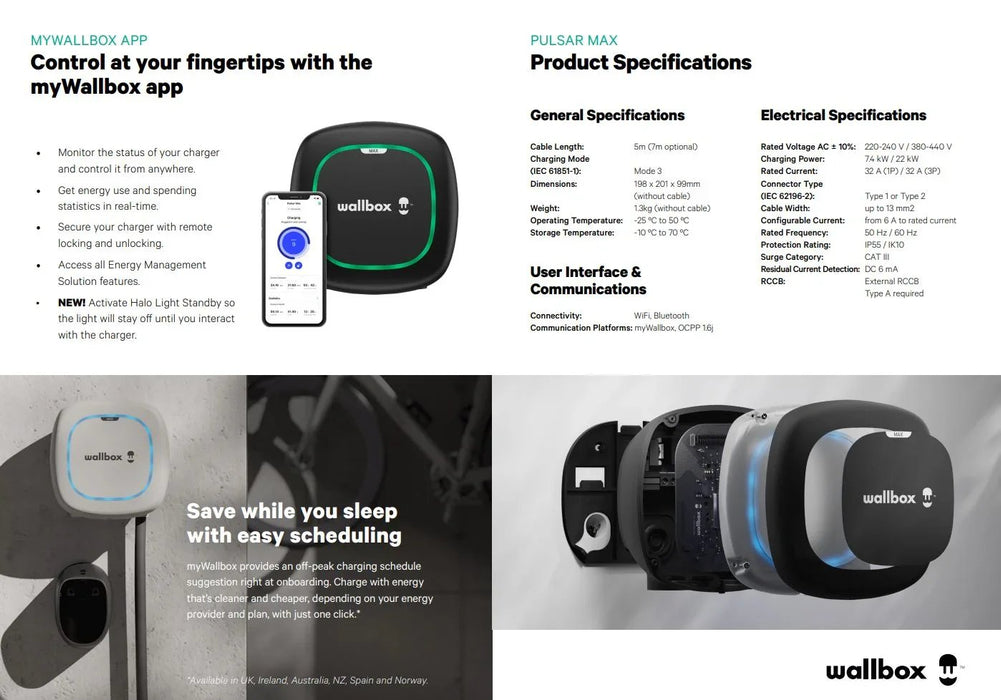

Electrical Specifications:
Rated Voltage AC ± 10%: 220-240 V / 380-440 V
Charging Power: 7.4 kW / 22 kW
Rated Current: 32 A (1P) / 32 A (3P)
Connector Type
(IEC 62196-2): Type 1 or Type 2
Cable Width: up to 13 mm2
Configurable Current: from 6 A to rated current
Rated Frequency: 50 Hz / 60 Hz
Protection Rating: IP55 / IK10
Surge Category: CAT III
Residual Current Detection: DC 6 mA
RCCB: External RCCB
Type A required
